Corner parts
Corner parts are the ideal solution to ensure seamless connections of KORAFLEX trench heaters in the corners of rooms. Corner parts are supplied complete as one unit and can be fitted with all types of grille. Heat exchangers cannot be placed in corner parts – corner parts are optional decorative accessories and as such have no effect on heat output. Corner parts must be ordered together with the relevant trench heaters and grilles.
Corner parts are the ideal solution to ensure seamless connections of KORAFLEX trench heaters in the corners of rooms. Corner parts are supplied complete and can be fitted with all types of grille. Heat exchangers cannot be placed in corner parts – corner parts are optional decorative accessories and as such have no effect on heat output. Corner parts must be ordered together with the relevant trench heaters and grilles.
Specifications
| Length by design width | 200 -500 mm |
| Module depth | 70 mm |
| Design width | 140, 160, 200, 260, 320, 340, 400 mm |
| Casing material | Galvanized steel casing, RAL 9005 black lacquered |
| Frame | Alu U-frame or F-frame (silver, light and dark bronze elox) |
| Grille | Roll-up, linear (silver, light and dark bronze elox) + wood. Steel and stainless steel on request. |

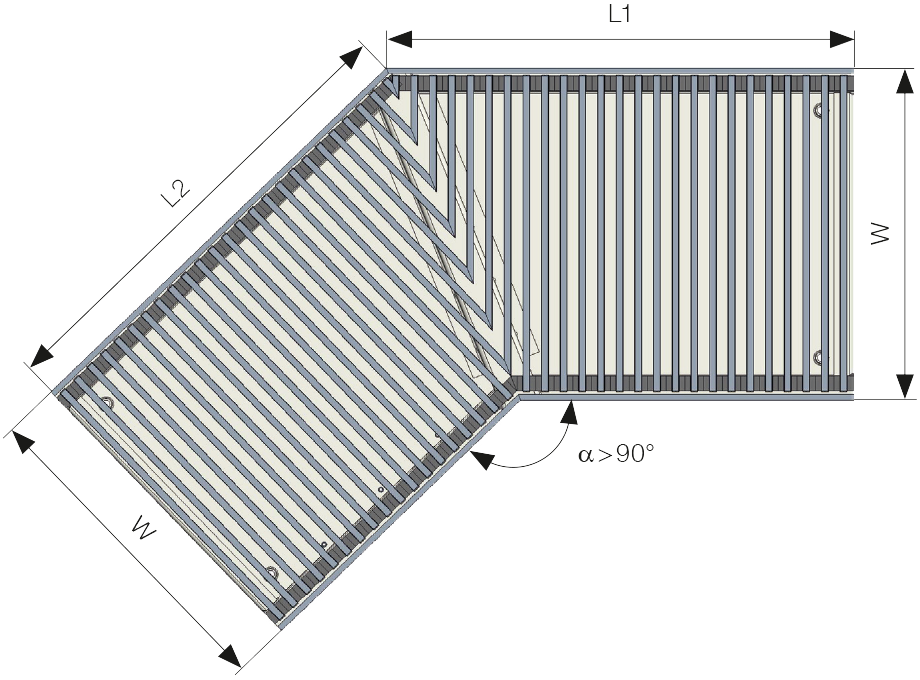

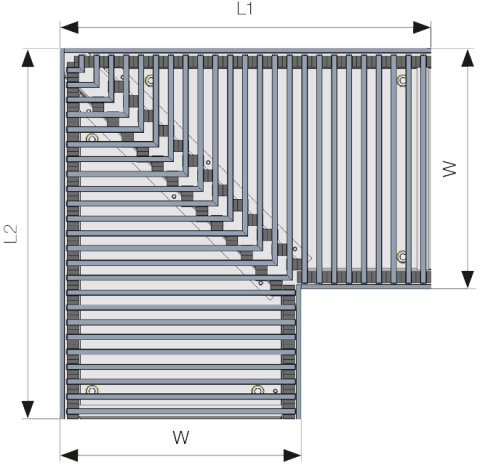

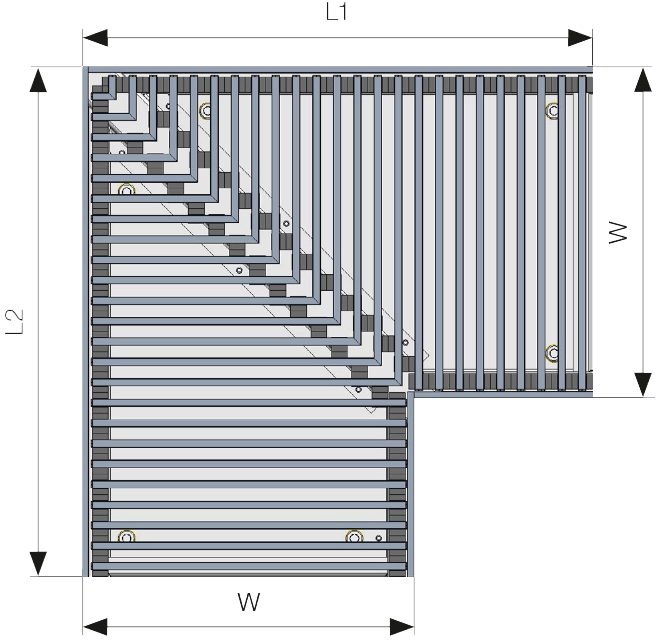

Corner part MA-A = 90° | Corner part MA-B ≠ 90° |
Size range
| Length L1, L2 [mm] | 200 | 300 | 400 | 500 | 500 |
| Trench heater width W [mm] | 140/160 | 200 | 260 | 320/340 | 400 |
ORDER CODE
| Module type | | Length/Depth/Width (cm) | | Frame | Frame colour | Grille material | Grille colour | Grill type | Lowered face |
|---|---|---|---|---|---|---|---|---|---|
| MAA | - | •••/07/•• | - | U | 1 | A | 1 | R | 0 |
| MAB | | | | U U-frame F F-frame 0 without frame | 1 silver elox 2 dark bronze elox 3 light bronze elox 9 other RAL colour 0 without frame | A aluminium B beech D oak M mahogany S steel R stainless steel | 1 silver elox 2 dark bronze elox 3 light bronze elox 9 other RAL colour 0 natural (wood, stainless steel) 1 lacquered wood 6 RAL 9006 (steel) | R roll-up L linear | 0 without lowered face 1 lower face – input side 2 lower face – opposite input side 3 both sides lower |
