KORALINE Optimal-V LVO  15/18

 with design grille and high-performance electric fan

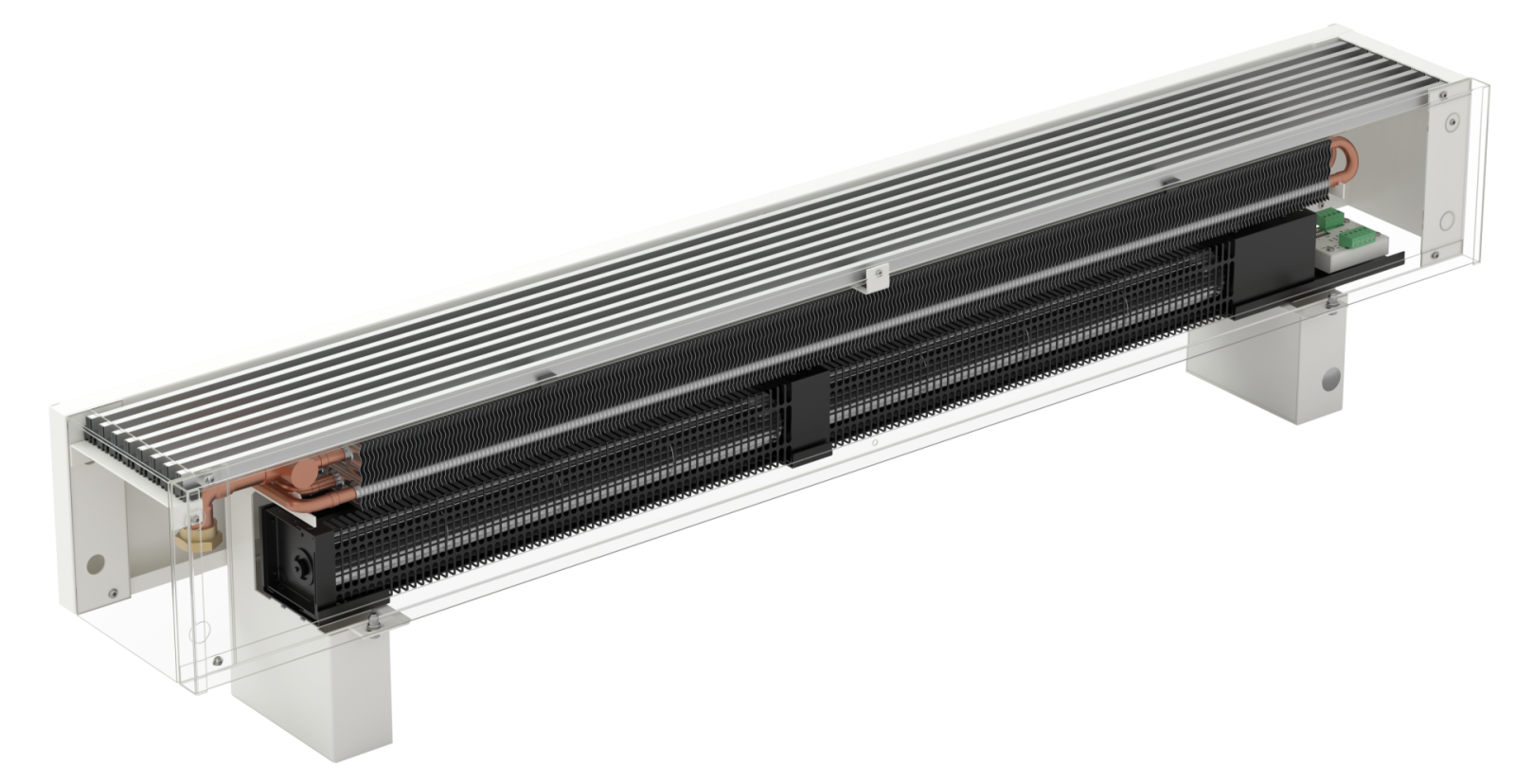

The KORALINE Optimal-V LVO height 150 mm, width 180 mm range of free-standing convectors is equipped with a specially designed Al/Cu heat exchanger and a set of low-energy, high-performance fans with minimal power consumption to ensure that the convectors achieve high efficiency even at low-temperature gradients. This type of convector is thus ideal for buildings with low-temperature systems such as heat pumps, solar systems, condensing boilers etc. The convectors can be controlled via BMS and due to their immediate response to changes in room temperature, very quiet operation and low surface temperature, they are suitable for use in family homes, apartment buildings and public areas.
heat pump

Dane techniczne Zapytanie
LV
  • Konwekcja wymuszona
  • Wyższa wydajność
  • Cicha, wydajna i energooszczędna
  • Synergia pomp ciepła
Height [mm] 150 mm
Width [mm] 180 mm
Length [mm] 900, 1 200, 1 600, 2 000, 2 400, 2 800 mm
Output [W] from 209 to 4 833 W
Heat exchanger height  [mm] 50  mm
Heat exchanger width  [mm] 100 mm
Heat exchanger effective length  [mm] L-300 mm
Fan impeller diameter   40 mm
Max. operating pressure [MPa] 1,2 MPa
Max. operating temperature [°C] 90 °C
Surface temperature  [°C] 40 °C According to inlet water temperature
Connection thread 2× G 1/2" inner
Connection method lower only

Tepelné výkony [W] při t1/t2/ti = při 75/65/20 ˚C (Δt=50) a 55/45/20 ˚C (Δt=30)/EN 442

ΔT = 50 °C Długość [mm] Współczynnik temperaturowy
Szerokość
[mm]		 Height
[mm]		 Pozycja przełącznika 900 1200 1600 2000 2400 2800
180 150 Wyłączony 209 313 452 591 730 869 1
180 150 1 854 1281 1850 2420 2989 3558 1
180 150 2 1007 1511 2183 2854 3526 4197 1
180 150 3 1160 1740 2513 3287 4060 4833 1

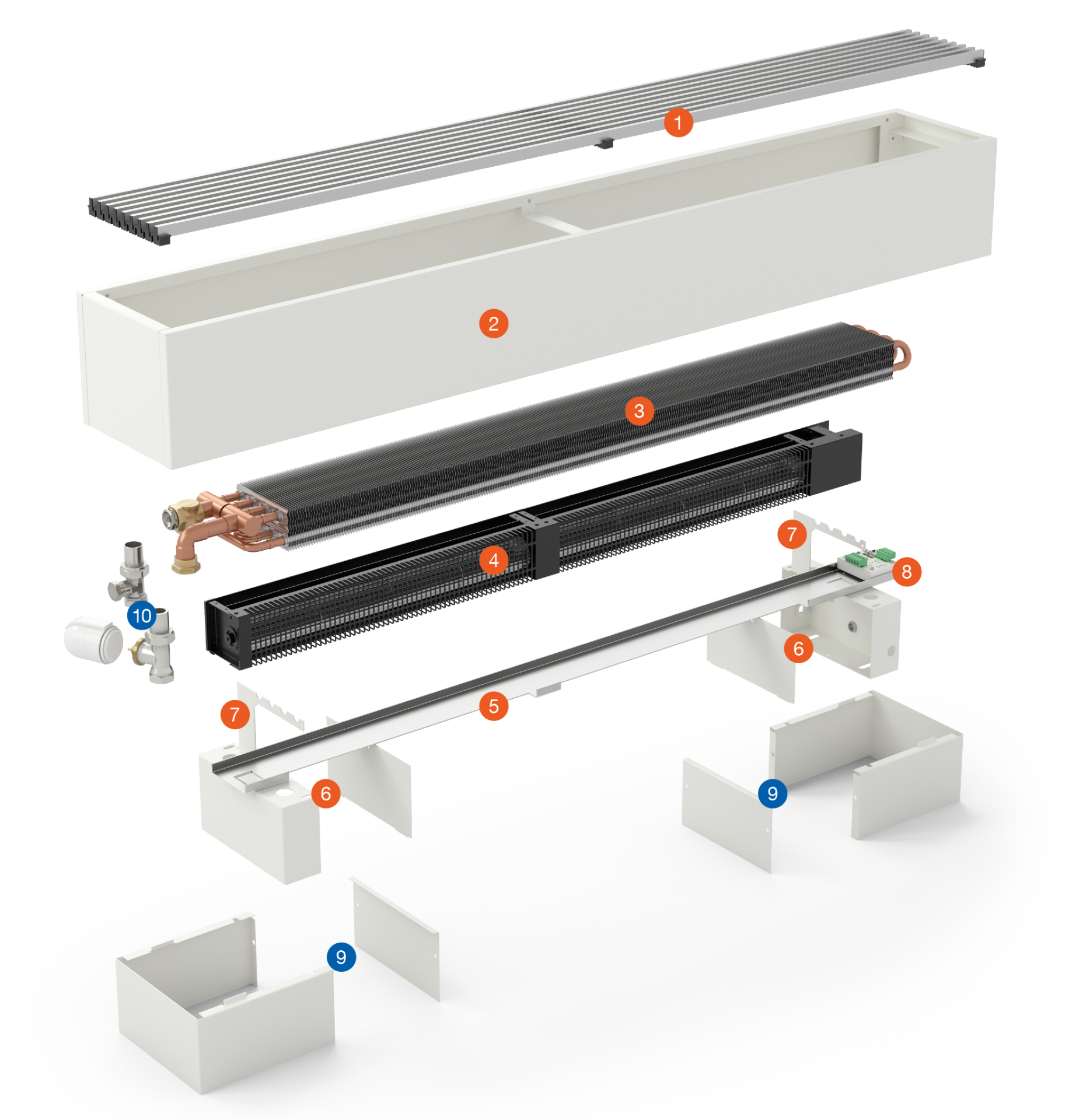

​Convector composition KORALINE Optimal-V LVO



KORALINE Optimal-V LVO-rozklad-vcetne-cisel_2
Standard contents
1 silver elox aluminium grille
 2 galvanized steel RAL 9016 white casing
3 Al/Cu low-water volume heat exchanger, bleed valve, uniquely shaped fins for max. heat output
4 set of low-energy EC 24 V DC quiet operation fans
 5   fan supports
6 floor-level brackets
7 transport stopper and bracket mount
 8  connection terminals and FCR-BOX electronic regulator
* assembly instructions and durable packaging


Optional accessories
9 floor-level bracket casing
10 elbow or straight lockshield
10 elbow or straight thermostatic valve

* further RAL lacquers for casings available
*TEP 24 thermoelectric actuator
*SIEMENS RDG 260T, RDG 260KN or RAB21DC room thermostat
*QAA32 room temperature sensor
*DC voltage supply
*R-Box  HPS

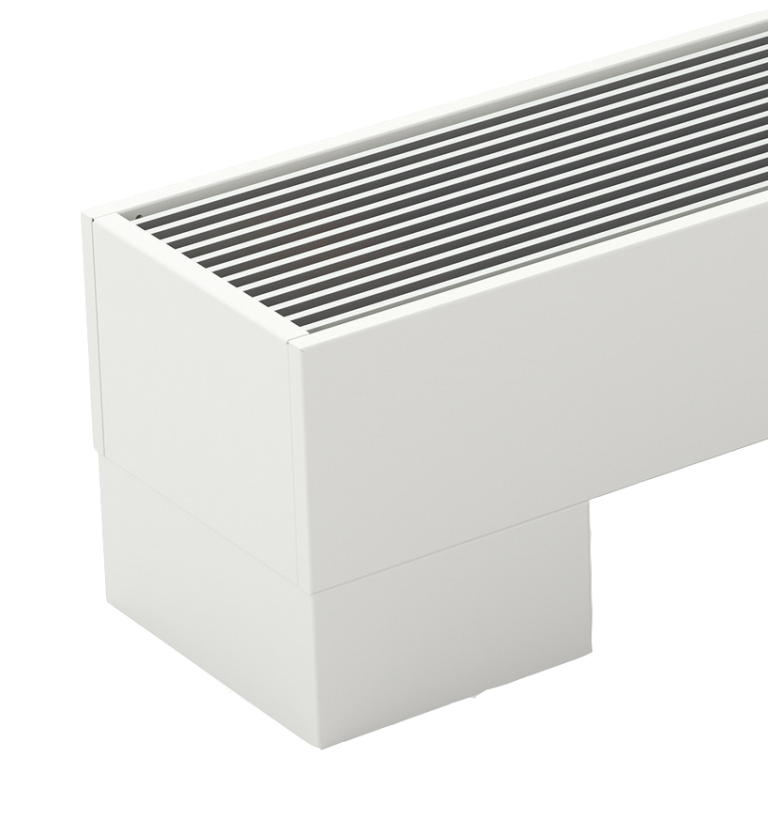

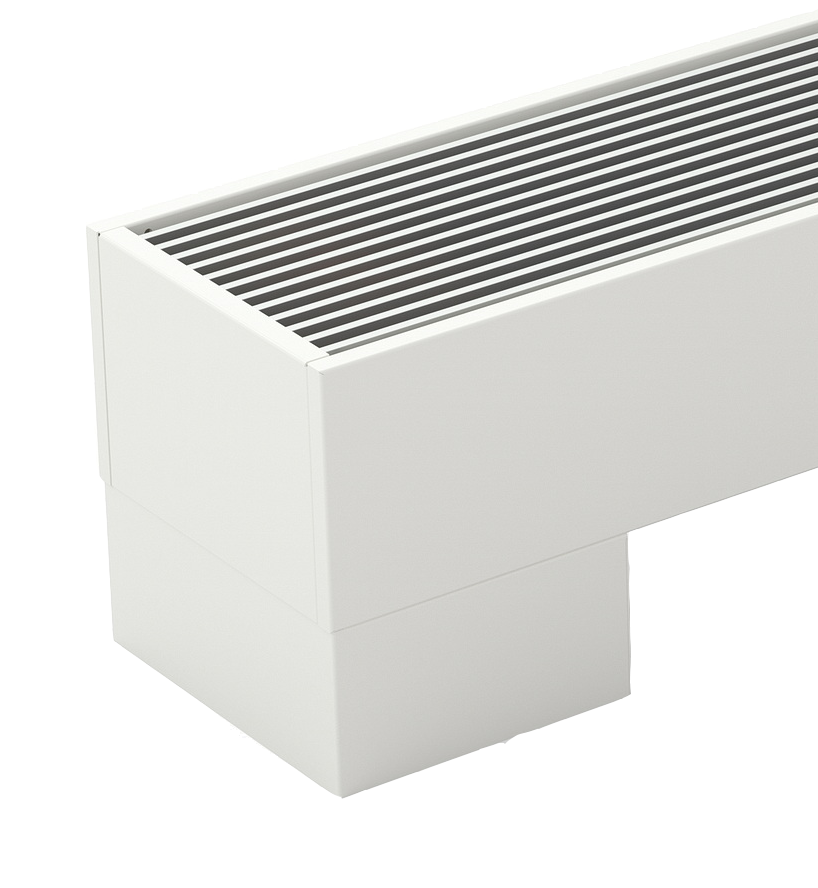

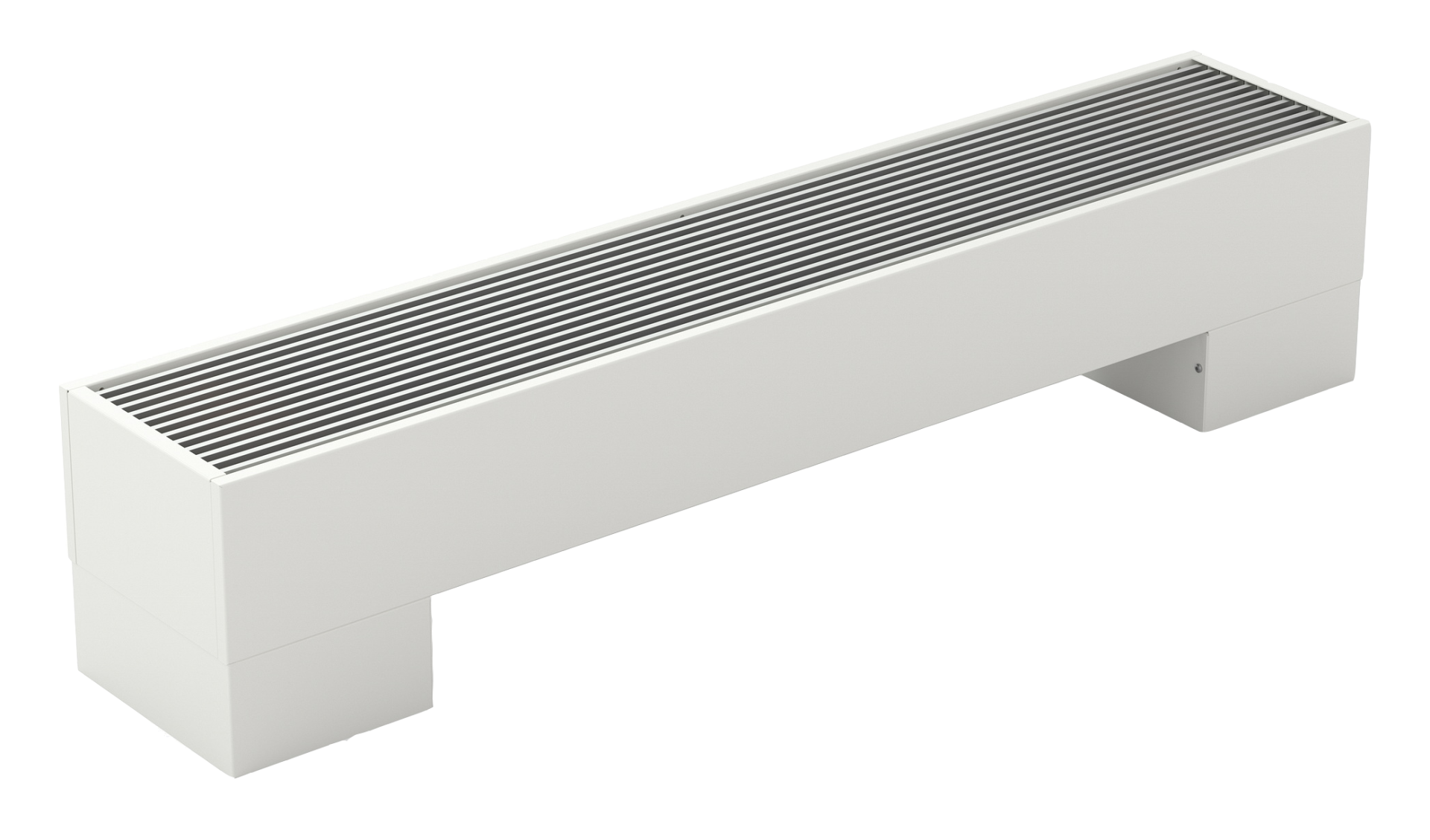

Optional accessories - Floor-level bracket casing  NEW

zakytování půl LVzakrytování

New Floor-level bracket casing optional accessory floor-level bracket casings are designed to cover connections and the edges of floor-level brackets, and must be ordered in pairs.



KORALINE free-standing convectors with wooden top are supplied with floor-level brackets. Other mounting options (sub-floor brackets, wall-mounting) are not available.



infoThe KORALINE wall-mounted convectors are not designed for sitting or loading. These activities can lead to damage to the device, reduce its efficiency, and increase the risk of accidents. For safe and efficient heating, it is always necessary to ensure that the convector remains free and the exhaust cover grille is not covered.

KORALINE Optimal-V LVO height 150 mm, width 180 mm
HPS lvo LVO

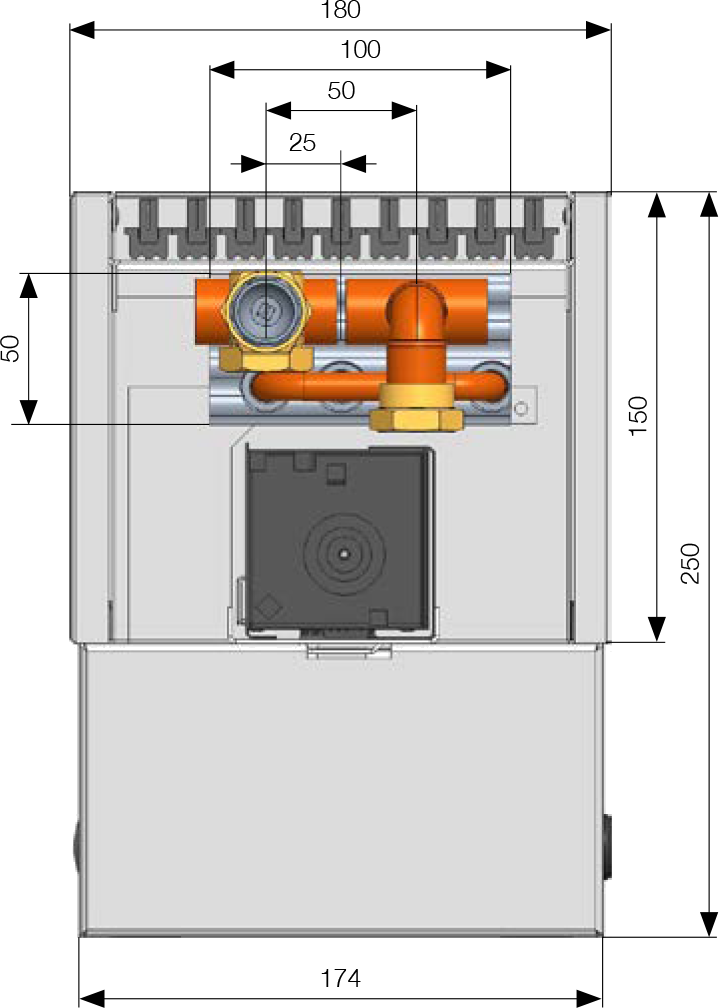

ASSEMBLY AND MOUNTING - (valid for all sizes)
Insert the fan bar into the bracket to establish the spacing for anchoring the bracket to the floor. The heat exchanger is then placed on the bracket and connected to the heating system. The heat exchangers must be bled. The fan sits on the fan support and is connected to the FCR Box. The final step is to install the aluminium grille and attach it by screwing it to the brackets. The grille is removable for easy cleaning. Please refer to the installation instructions for more detailed information.
HPS LVO L = Convector length Ld = L – 307 mm
 (for convectors up to 2 800 mm in length)

info For KORALINE Optimal-V LVO over 2000 mm in length, we recommend the use of a central bracket for increased stability.
infoKORALINE floor standing convectors are not intended for sitting or bearing weights. These activities can lead to damage to the device, reduce its efficiency and increase the risk of accidents. For safe and efficient heating, it is always necessary to ensure that the convector remains free and the exhaust cover is not covered.

ORDERING CODES

Example of ordering code: LVO-200/15/18-V1SA1-10-RT

KORALINE Optimal-V LVO free-standing convector with fan, Length 200 cm, Height 15 cm, Width 18 cm, Steel casing white RAL 9016, Aluminium silver elox grille, non-lacquered heat exchanger.

KORALINE
Forced
convection

Optimal-V

Length/Height/Width (cm)

Convector
connection
Heat
exchanger
colour
Material
used
Grille
type
Grille
colour

Casing
colour

Electrical
regulation
L V O - 200/15/18 - V 1 S A 1 - 10 - RT












counter-flow
1- without colour
5- black RAL 9005

steel
aluminium
elox silver

10 - RAL 9016
39 - RAL 9005
** Colour chart Licon
99 other RAL colour
   standard
