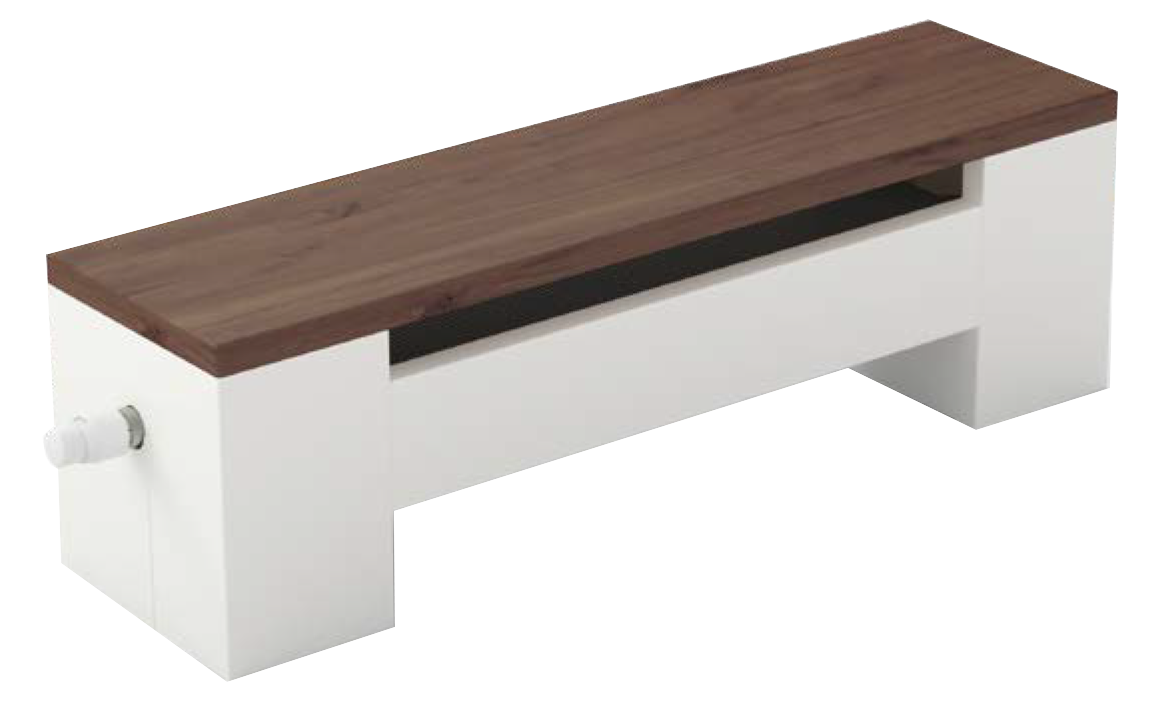

KORALINE Pool LDP with bench top

standard design with wooden top, suitable for humid environments

KORALINE Pool LDP free-standing convectors with wooden bench tops in American walnut are designed specifically for humid environments. The timeless casing design is manufactured from AISI 316 stainless steel and the bench top is treated with an internationally certified oil finish. This model range is especially suited for conservatories, pools and all other humid environments.

Dane techniczne Zapytanie
LDX
  • Ogrzewanie
  • Konwekcja naturalna
  • Niskie zużycie energii
  • Rozwiązanie do basenów
Unit height inc. bench top  [mm] 300, 450 mm
Unit width inc. bench top  [mm] 265, 315 mm
Unit length inc. bench top  [mm] 1 000, 1 200, 1 400, 1 600, 1 800, 2 000 mm
Output [W] from 721 to 3 525 W
Max. operating pressure [MPa] 1,2 MPa
Max. operating temperature [°C] 90 °C
Surface temperature  [°C] 40 °C According to inlet water temperature
Connecting thread inner G 1/2"
Connection method lower (recommended), side
Bench tops American walnut

Tepelné výkony [W] při t1/t2/ti = při 75/65/20 ˚C (Δt=50) a 55/45/20 ˚C (Δt=30)/EN 442

ΔT = 50 °C Długość [mm] Współczynnik temperaturowy
Szerokość
[mm]		 Height
[mm]		 1000 1200 1400 1600 1800 2000
265 300 721 934 1147 1360 1573 1786 1,429
315 450 1483 1891 2300 2708 3117 3525 1,3864

Convector composition KORALINE Pool LDP

LD kompletace 2022
Standard contents
1 wooden bench top – American walnut - Wooden bench tops are made of purely natural materials, treated with an internationally certified oil finish. To maintain their properties and stability, we recommend that bench tops are regularly treated with a similar product. When using American walnut bench tops in humid environments, we recommend using a protective intermediate layer (e.g. a towel) when sitting
2AISI 316 stainless steel RAL 9016 white casing
3magnetic side cover in casing colour
4axial thermostatic valve, thread M 30 × 1.5
5extension nipple
6 Al/Cu low water volume RAL 9005 lacquered heat exchanger, bleed valve, uniquely shaped fins for maximum heat output
7 floor-level brackets assembly
 *instructions and durable packaging

Optional accessories
8 thermostatic head
*further RAL lacquers for casings available
*further RAL lacquers for Al/Cu heat exchangers available
*elbow or straight thermostatic valve
* elbow or straight lockshield
*TEP 230 or TEP 24 thermoelectric actuator
*SIEMENS RAA21 or RDE 100.1 room thermostat
*QAA32 room temperature sensor
*thermostatic head with incorporated control and immersion remote sensor
KORALINE Pool LDP
HEIGHT 300 mm
WIDTH  265 mm

300-265
HEIGHT  450 mm
WIDTH   315 mm

450-315
BENCH TOPS

American walnut

ořech



Wooden bench tops are made of purely natural materials and treated with an internationally certified oil finish. To maintain their properties and stability, we recommend that bench tops are regularly treated with a similar product. When using American walnut bench tops in humid environments, we recommend using a protective intermediate layer (e.g. a towel) when sitting.



BENCH TOPS   - Wooden bench tops are made of purely natural materials, treated with an internationally certified oil finish. To maintain their properties and stability, we recommend that bench tops are regularly treated with a similar product.
ASSEMBLY – FREE-STANDING CONVECTORS
Installation instructions
We recommend attaching the brackets (see dimensions in the installation instructions) to the floor. Place the heat exchanger on them and connect it. Fit the casing with the bench top and fasten it. Please refer to the installation instructions for more detailed information. For correct operation and maximum output, the heating elements must be filled with a heating medium and properly vented after installation. After being mounted on the convector, the wooden bench top is secured against unwanted movement by lateral fixing.

Convectors with wooden bench tops installed in humid environments must be cleaned regularly with clean water and dried thoroughly. We recommend the installation of Pool convectors with American walnut benches. Bench tops are made from purely natural materials and treated with an internationally certified oil finish. To maintain their properties and stability, we recommend that bench tops are regularly treated with a similar product. When using American walnut bench tops in humid environments, we recommend using a protective intermediate layer (e.g. a towel) when sitting.

For more detailed guidance and installation instructions for the given types, please refer to the installation instructions for KORALINE with wooden bench tops. Bench tops are made of natural materials and therefore slight variations in colour cannot be excluded. The supplier cannot fully guarantee the colours shown nor accept claims due to any variations in colour.

For ideal operating conditions and to lengthen the life of the product, we recommend a water pH value of 7.2–7.6 with a maximum chlorine concentration of 1 mg/l. Changes in these values – in particular lower pH values – will result in more aggressive water and corrosion of nonstainless steel components. Convectors with wooden bench top installed in humid environments must be cleaned regularly with clean water and dried thoroughly. Further information can be found in the Installation Manual and Operating and Warranty Conditions,
MOUNTING

LD_montáž

The minimum distance for KORALINE LDO and LDP free-standing convectors from the wall is 100 mm.
LOWER CONNECTIONS
HEIGHT 300 mm
WIDTH   265 mm

Spodní připojení LD 300_265

HEIGHT 450 mm
WIDTH   315 mm

Spodní připojení LD 450_315



KORALINE LD montáž

KORALINE free-standing convectors over 1 600 mm in length are supplied with a central leg as standard.

ORDERING CODES

Example of ordering code: LDP-140/30/26-V5RO1-10

KORALINE LDP free-standing convector (Pool), Length 140 cm, Height 30 cm, Width 26.5 cm, Stainless steel casing white RAL 9016, Al/Cu RAL 9005 lacquered heat exchanger 9005, American walnut bench top.

KORALINE
With
bench

 Type
Pool

Length/Height/Width (cm)

Convector
connection
Heat
exchanger
colour
Material used
Bench
type
Bench
type

Casing
colour
L D P - 140/30/26 - V 5 R O 1 - 10












counter-flow
RAL 9005
stainless steel
AISI 316
American walnut



 solid wood




10 RAL 9016
** Colour chart Licon
99 other RAL colour
