KORASPACE

facade convectors

The facade convectors KORASPACE FK by their direct location on the facade prevent penetration of the cold air into the interior space. The warm air rising from the convectors mixes with the cold air and creates a thermal screen, which provides greater thermal comfort inthe indoor space and prevents condensation from forming on the glass surface.

• design freedom
• high-performance Al/Cu heat exchangers
• excellent controllability and fast heating start-up
• no heat transfer to the external facade
• additional space for placement of other piping Facade convectors with natural convection

Dane techniczne Zapytanie

Ogrzewanie
Konwekcja naturalna
Bezpieczna konstrukcja

Model KORASPACE FK Economic	grey coated casing (RAL 9007) and unpainted exchanger
Model KORASPACE FK Exclusive	grey coated casing (RAL 9007) and painted exchanger (RAL 9007)
Height [mm]	56 mm
Width [mm]	120, 150, 180 mm
Length [mm]	800 až 3000 ( po 200 mm)
Max. working pressure [MPa]	1,2 MPa
Max. working temperature [°C]	90 °C
Connecting thread	inner G 1/2"

Tepelné výkony [W] při t₁/t₂/t_i = při 75/65/20 ˚C (Δt=50) a 55/45/20 ˚C (Δt=30)/EN 442

Temperatura na wlocie w °C

Temperatura na wylocie w °C

Temperatura powietrza w °C

ΔT

ΔT = 50 °C		Długość [mm]												Współczynnik temperaturowy
Height [mm]	Szerokość [mm]	800	1000	1200	1400	1600	1800	2000	2200	2400	2600	2800	3000	Współczynnik temperaturowy
60	120	154	202	251	300	349	397	446	495	543	592	641	690	1,3
60	150	305	401	498	595	692	788	885	982	1078	1175	1272	1369	1,3
60	180	305	401	498	595	692	788	885	982	1078	1175	1272	1369	1,3

Powrót do listy

Skontaktuj się z nami

W celu uzyskania dodatkowych informacji prosimy o kontakt

KORASPACE – xxx/6/12	KORASPACE – xxx/6/15	KORASPACE – xxx/6/18
( height 5,6 cm, width 11,4 cm, with an optional integrated piping run )	(height 5,6 cm, width 15 cm, without integrated piping run )	( height 5,6 cm, width 17,4 cm, with an optional integrated piping run)

KORASPACE

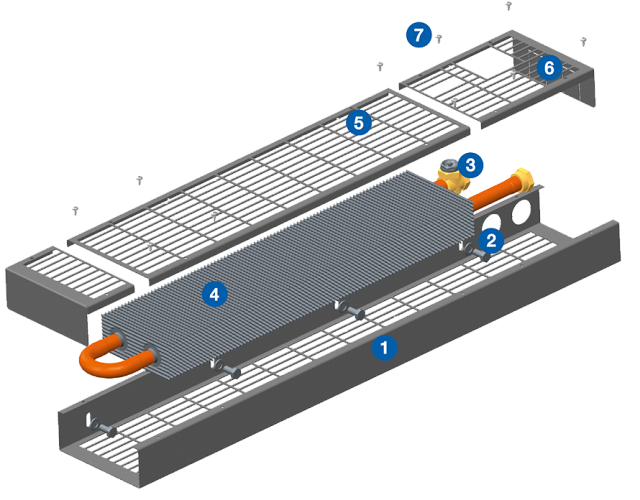

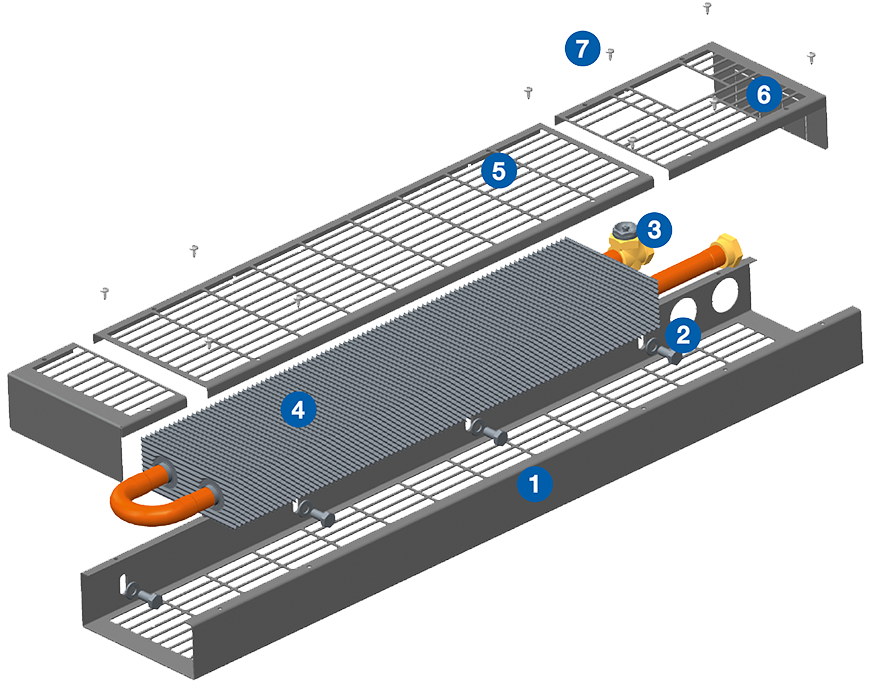

Convector compositition

Standard contents

Optional accessories

Overview of manufactured types

KORASPACE – xxx/6/12

KORASPACE – xxx/6/15

KORASPACE – xxx/6/18

KORASPACE - Facade convectors installation

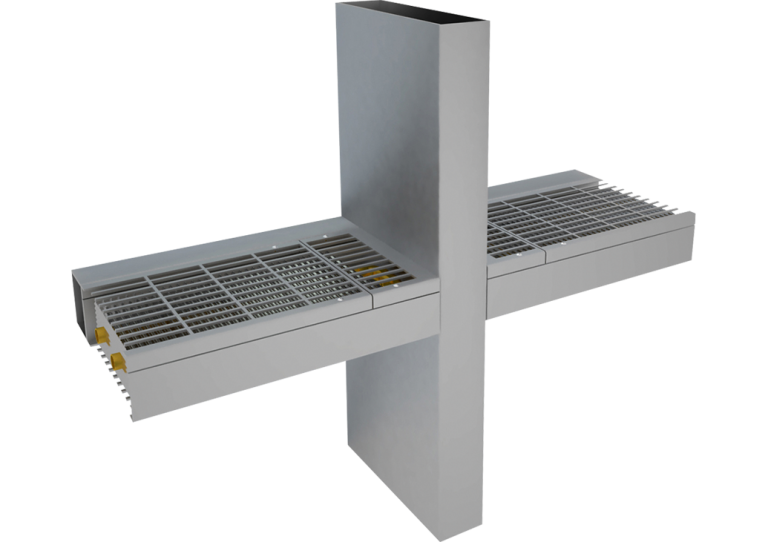

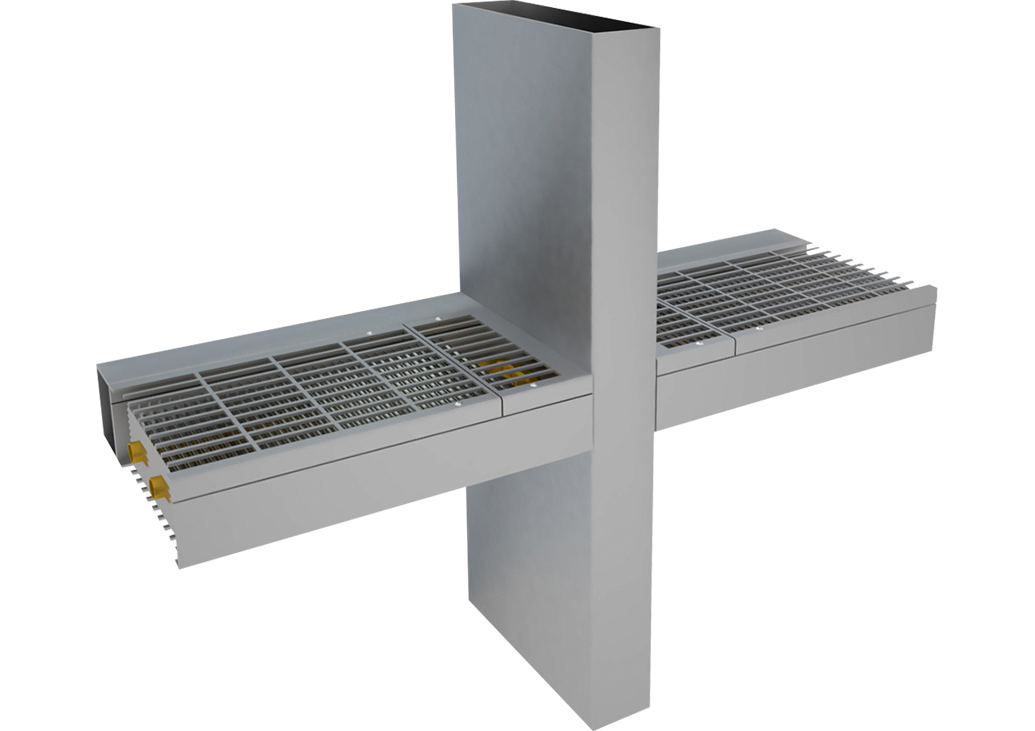

Installation on the horizontal crosspiece, between vertical supports

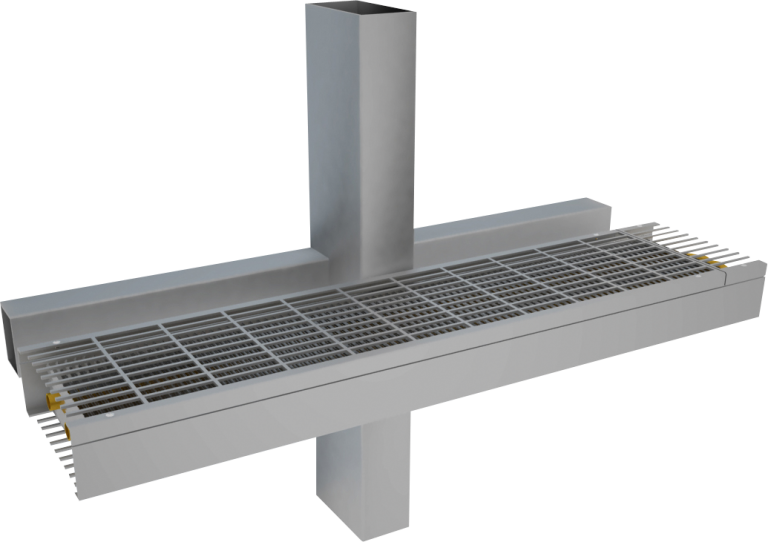

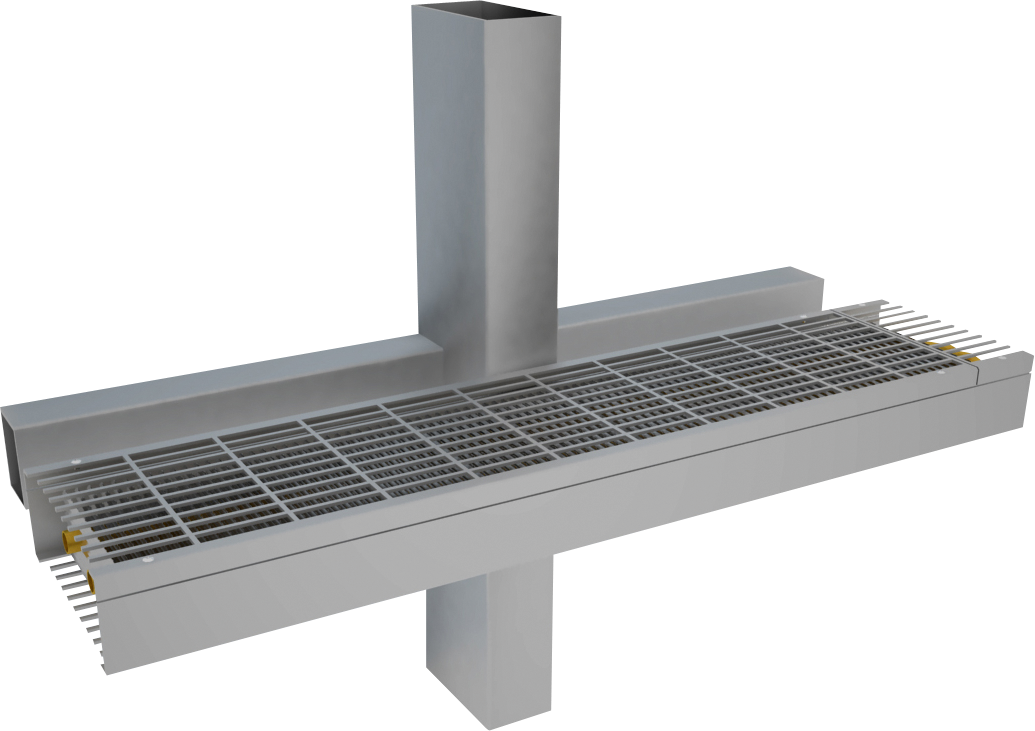

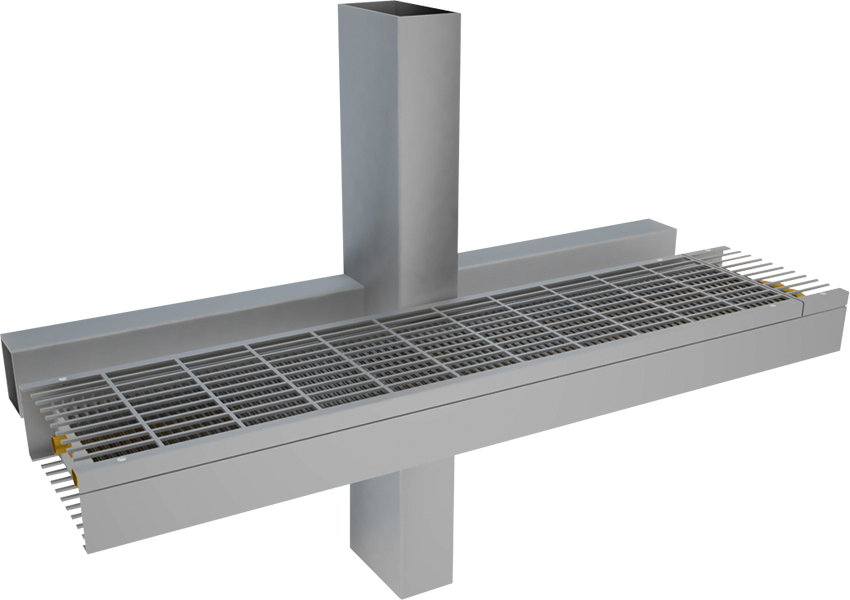

Installation on vertical support

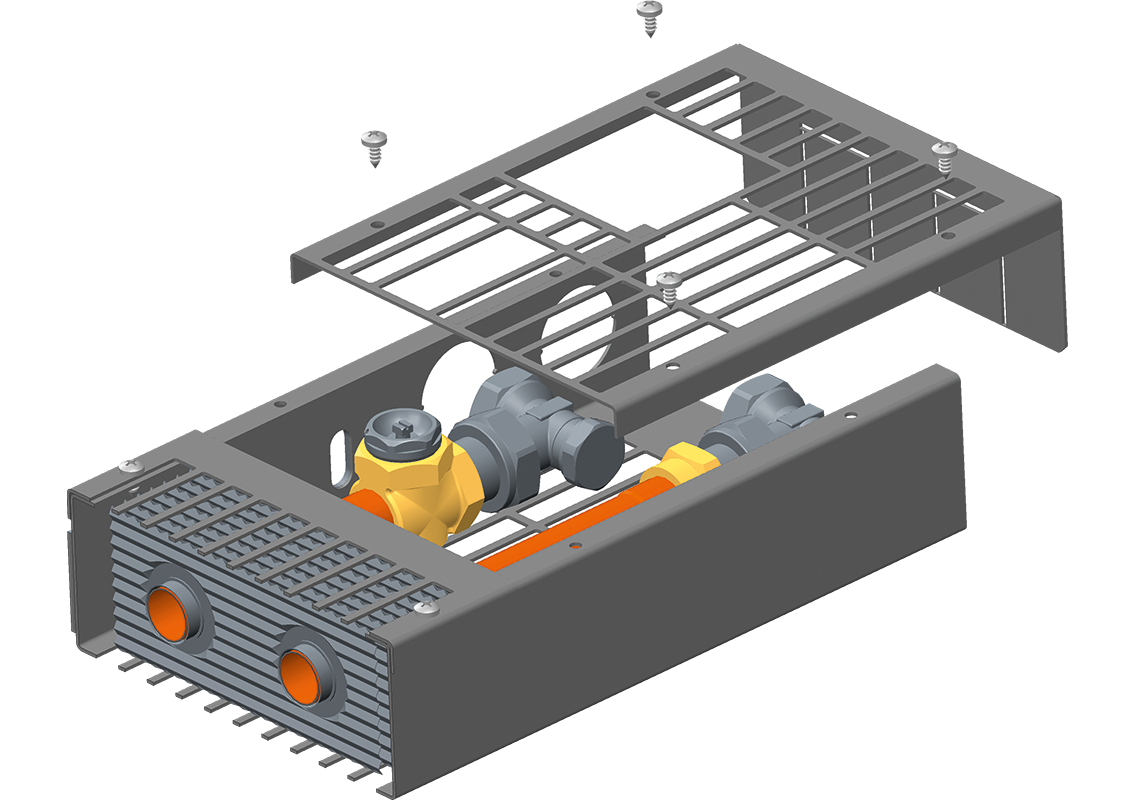

Convector KORASPACE FK assembly

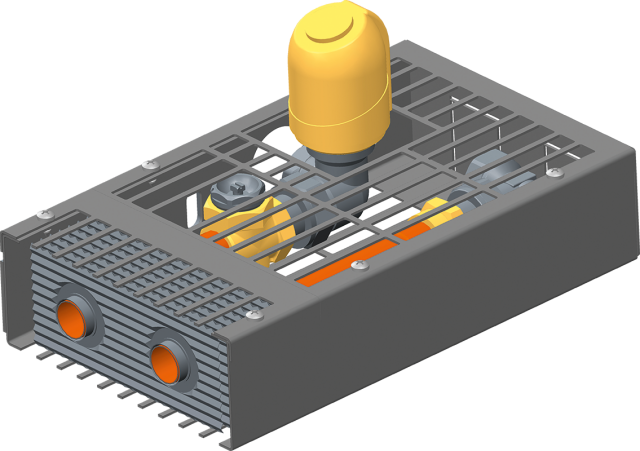

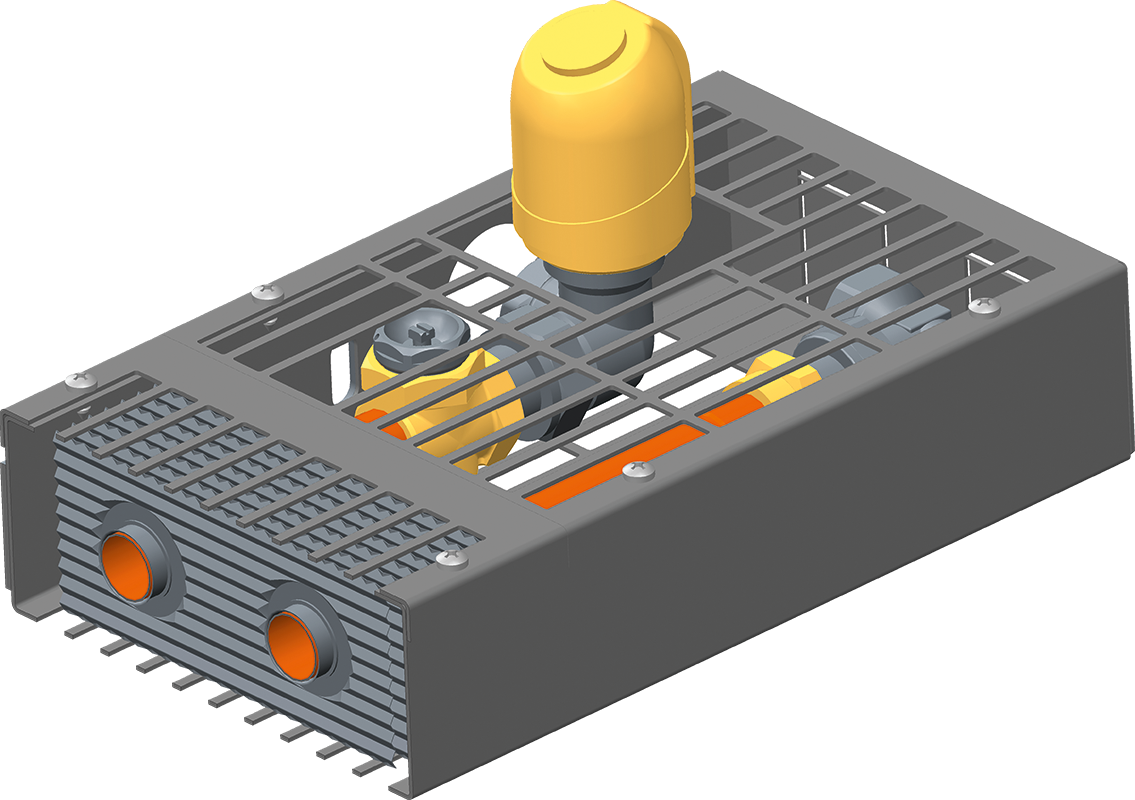

Connections with thermostatic valve and thermoelectric drive

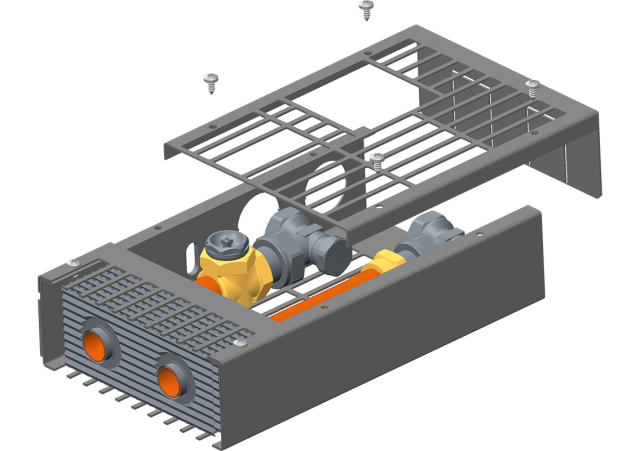

Connections with shut-off valve

Skontaktuj się z nami

Installation on the horizontal crosspiece, between vertical supports	Installation on vertical support

Connections with thermostatic valve and thermoelectric drive	Connections with shut-off valve
